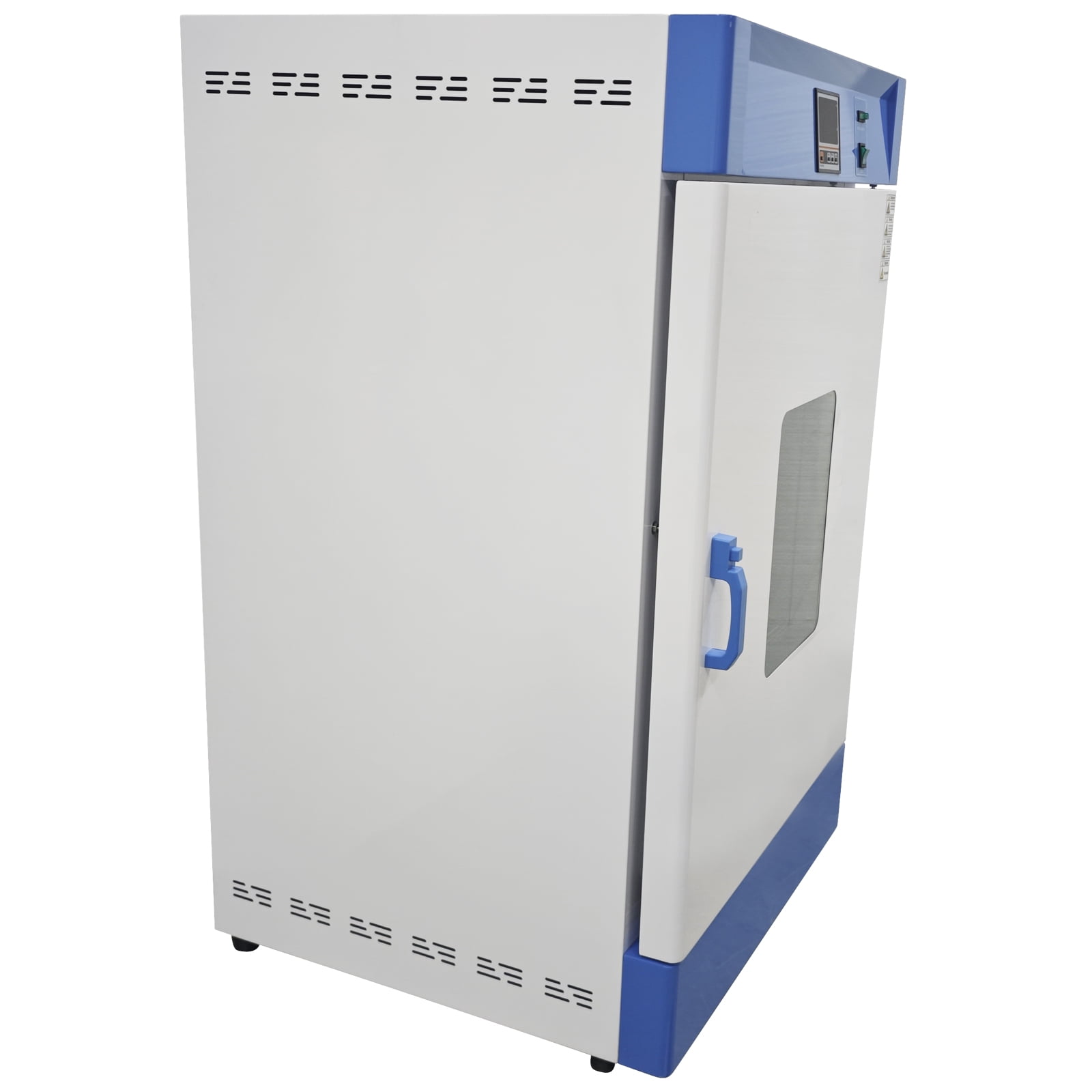

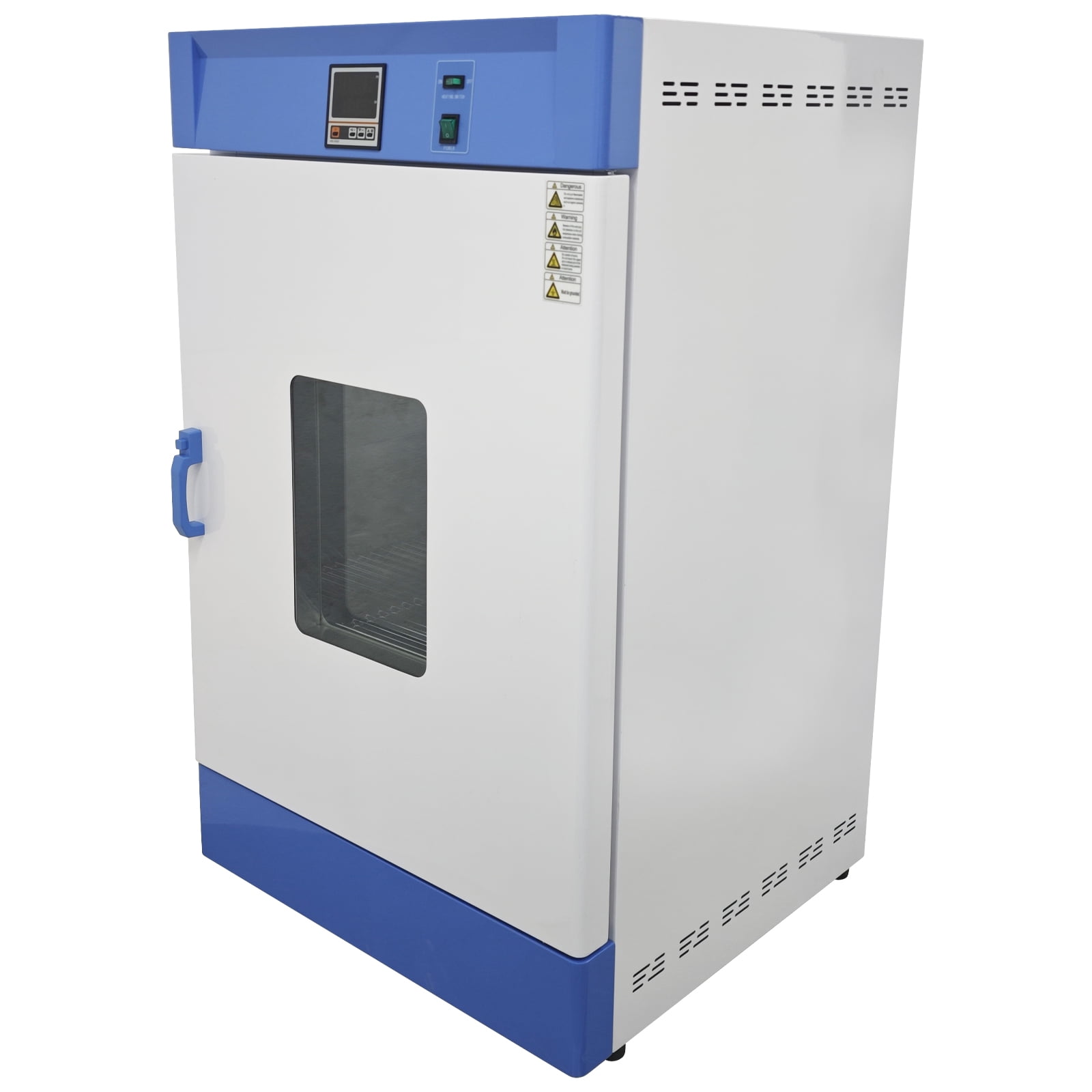

DH-600BS Electrothermal Incubator Intelligent Temperature Control Lab Thermostatic Device

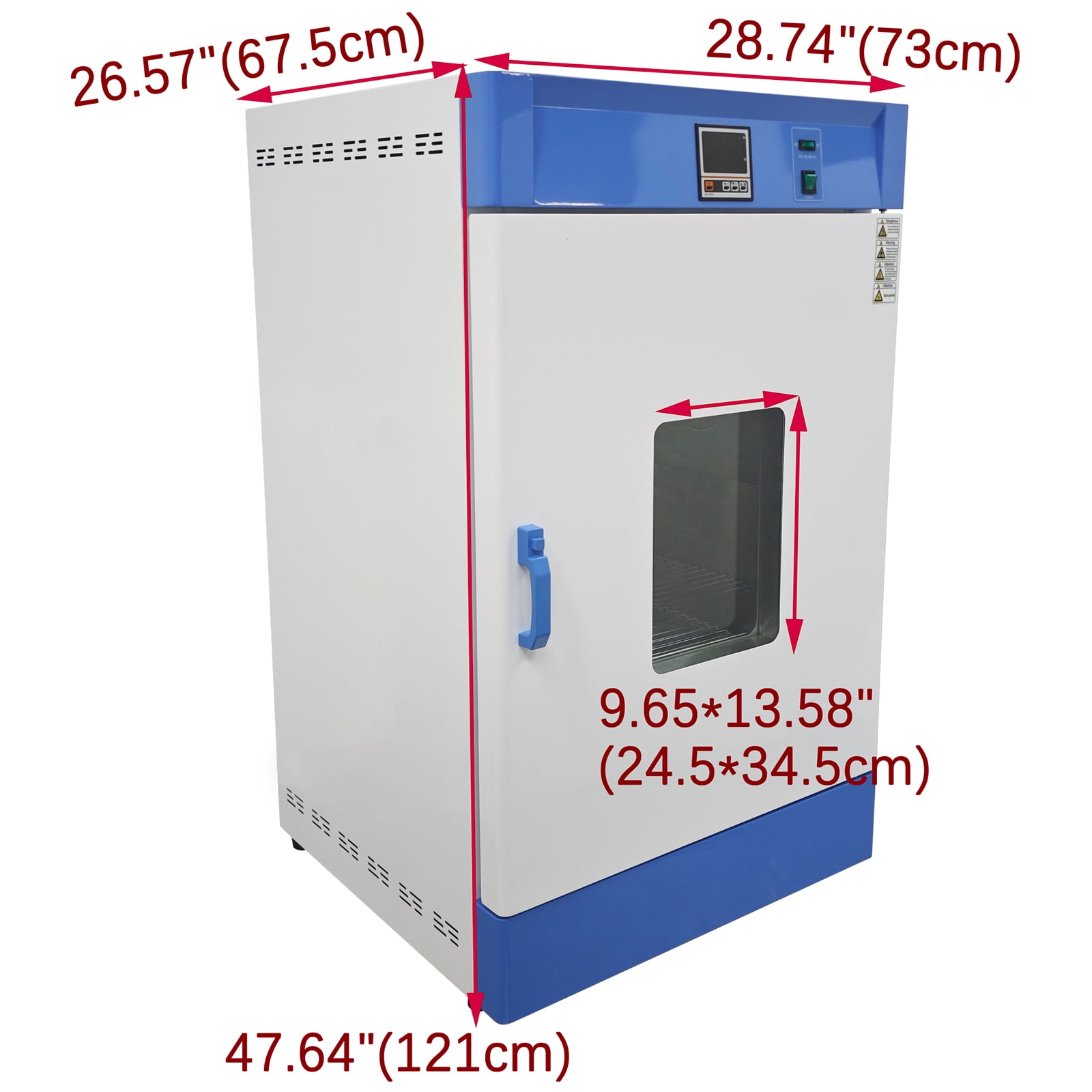

Product Overview: <br>The electro-thermal incubator is a high-performance thermostatic facility for the scientific research and industrial fields. It is equipped with a stainless steel inner container and an intelligent temperature control system, effectively keeping the internal temperature uniform and stable. The electro-thermal incubator is suitable for drying, roasting, wax melting and thermal treatment in the industrial enterprises, mining enterprises and laboratories of scientific research institutions. <br> <br>Product Parameters: <br>Model: 600BS <br>Voltage: 110V <br>Power: 500W <br>Temperature control range: RT+5~65˚C <br>Temperature accuracy: ±0.5˚C <br>Heating mode: Heating tube <br>Material of inner container: Stainless steel inner container <br>External size of machine: 26.57*28.74*47.64 inches (67.5*73*121cm) <br>Size of inner chamber: 18.7*23.62*27.56 inches (47.5*60*70cm) <br>Capacity: 210L <br> <br>Attention: <br>1. During operation, do not touch the two wiring terminals on the top of the chamber and the electrical components on the side or top with your hands. <br>2. Avoid wiping the equipment with cloth or rinsing it with water. <br>3. Power Management: <br>(1) Before use, install the power socket as specified and ensure the upper inclined foot is effectively grounded. <br>(2) The power cord should not be wrapped around metal objects or placed in damp or high-temperature areas to prevent rubber aging and electric leakage. <br>(3) Disconnect the power supply when the equipment is not in use for a long time. <br> <br>4. Samples: <br>(1) Do not place corrosive or flammable items. <br>(2) When placing precious strains and cultures, observe them frequently and cut off the power immediately in case of abnormalities. <br> <br>5. Maintenance: <br>(1) Clean and maintain the constant-temperature incubator regularly to keep the equipment operating normally. <br>(2) Do not open the temperature controller unless it is necessary, so as to avoid damage. 6. High-Temperature Protection: When the constant-temperature incubator is used at high temperatures, take care to prevent burns. <br> <br>Operation Method <br>1. Connect the power supply, and then turn on the power switch and heating switch. <br>2. Press the SET key to enter the temperature setting mode. The lower row displays the set temperature. Use the ◄, ▲ and ▼ keys to adjust the temperature to the desired value, and then press the SET key again. <br>3. If an over-temperature alarm is triggered due to the change of the set temperature value, press any key to mute the alarm. <br>4. ◄ key: In the setting state, press this key to shift, flash and change the set value. <br>5. ▼ key: In the setting state, press this key to decrease the set value progressively, and press and hold this key to continuously decrease the set value progressively. In the timing state, press and hold this key for 3 seconds to stop the program. <br>6. ▲ key: In the setting state, press this key to increase the set value progressively, and press and hold this key to continuously increase the set value progressively. <br>7. If no key is pressed in 1 minute, the controller will automatically return to the normal display state. <br>8. If the upper row of the display window of the controller displays '--', it indicates that the temperature sensor or the controller has a fault. Please carefully check the temperature sensor and its wiring. <br> <br>Item included(238054): <br>Electro-thermal Incubator 110V

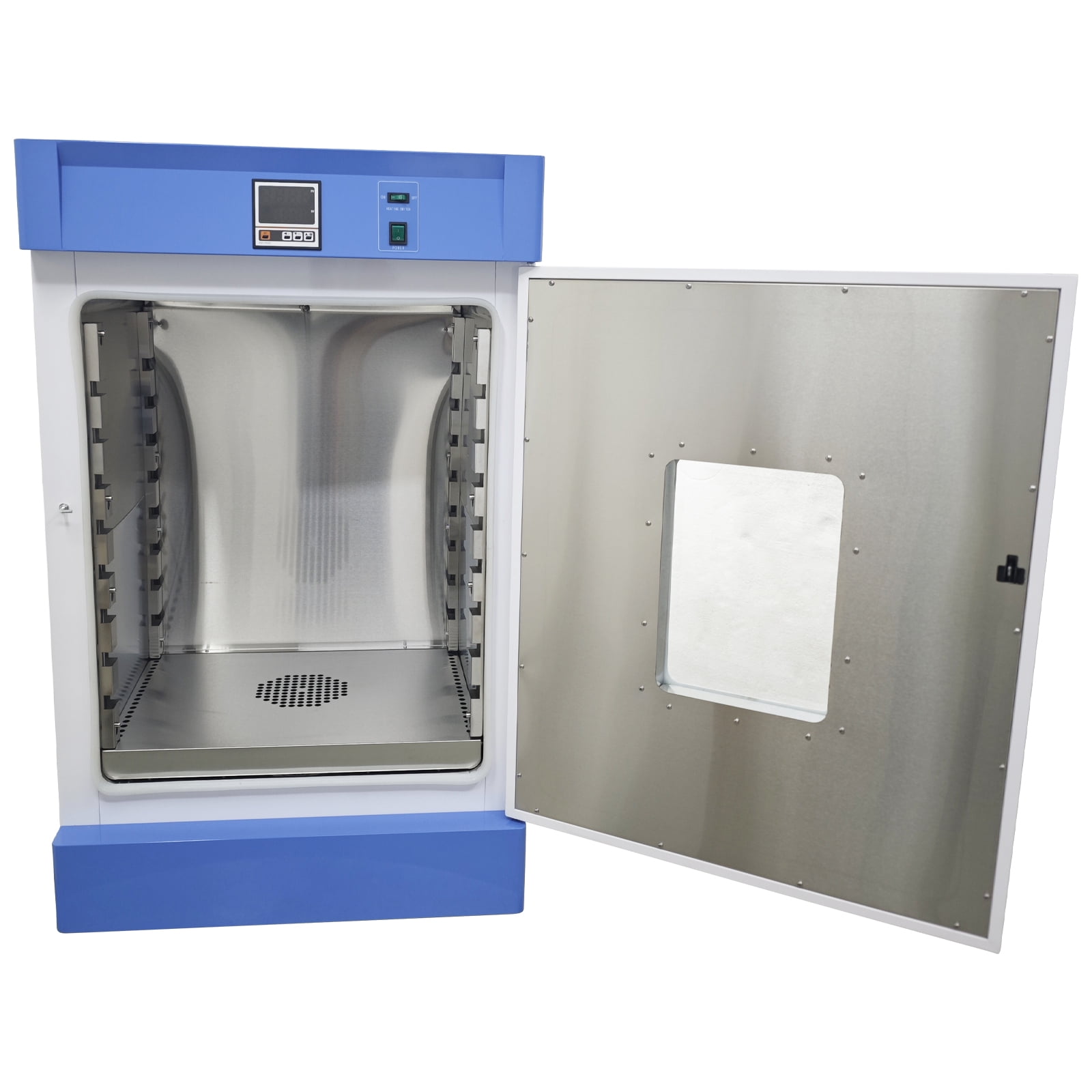

• ‌Durable & Hygienic Construction: Outer shell made of cold-rolled steel with electrostatic spray coating for corrosion resistance. The stainless steel working chamber features rounded corners and adjustable shelves for easy cleaning and maintenance.

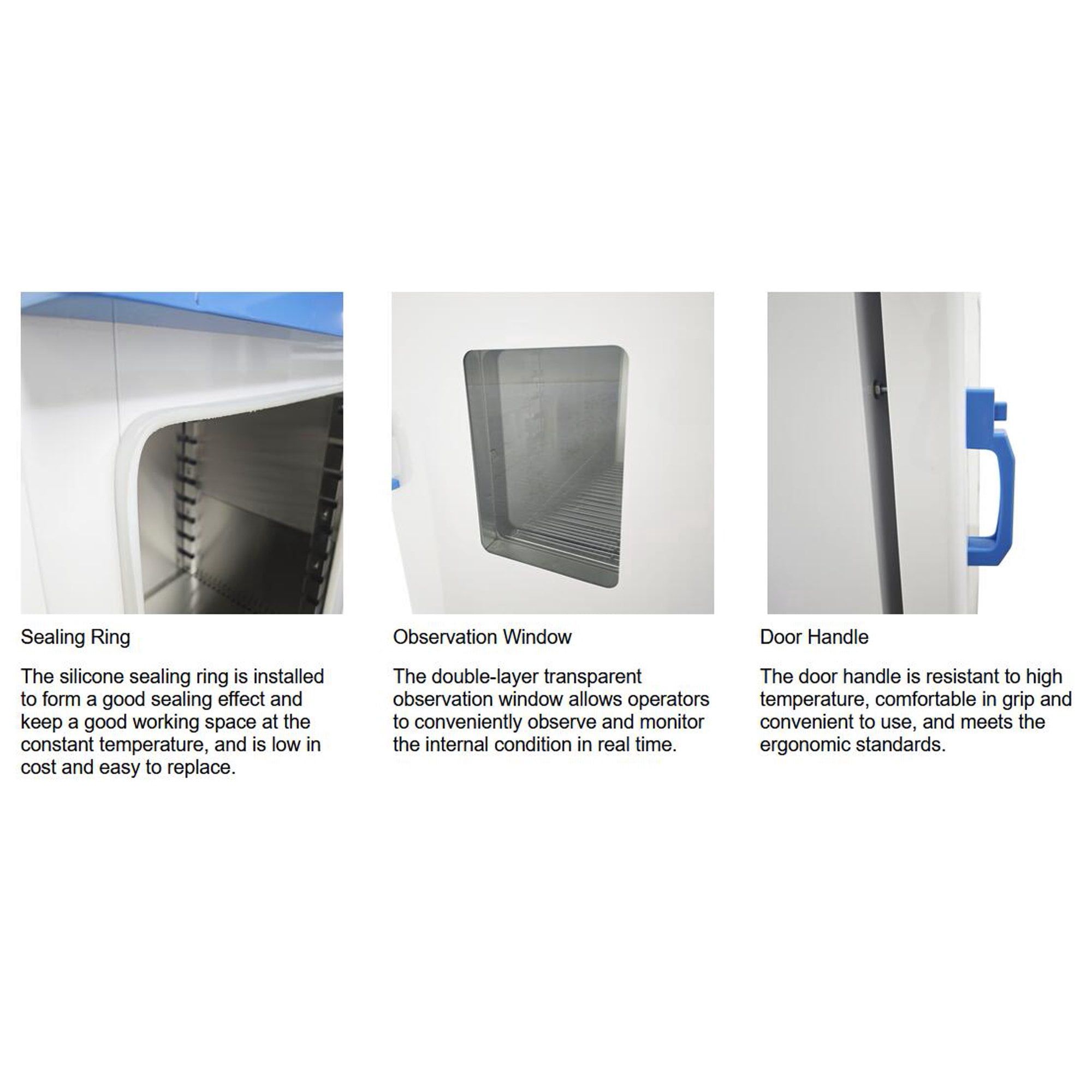

• Uniform Temperature Distribution: Full three-dimensional forced air supply technology ensures consistent temperature throughout the chamber. High-temperature silicone sealing strips and an insulated design minimize heat loss and maximize energy efficiency.

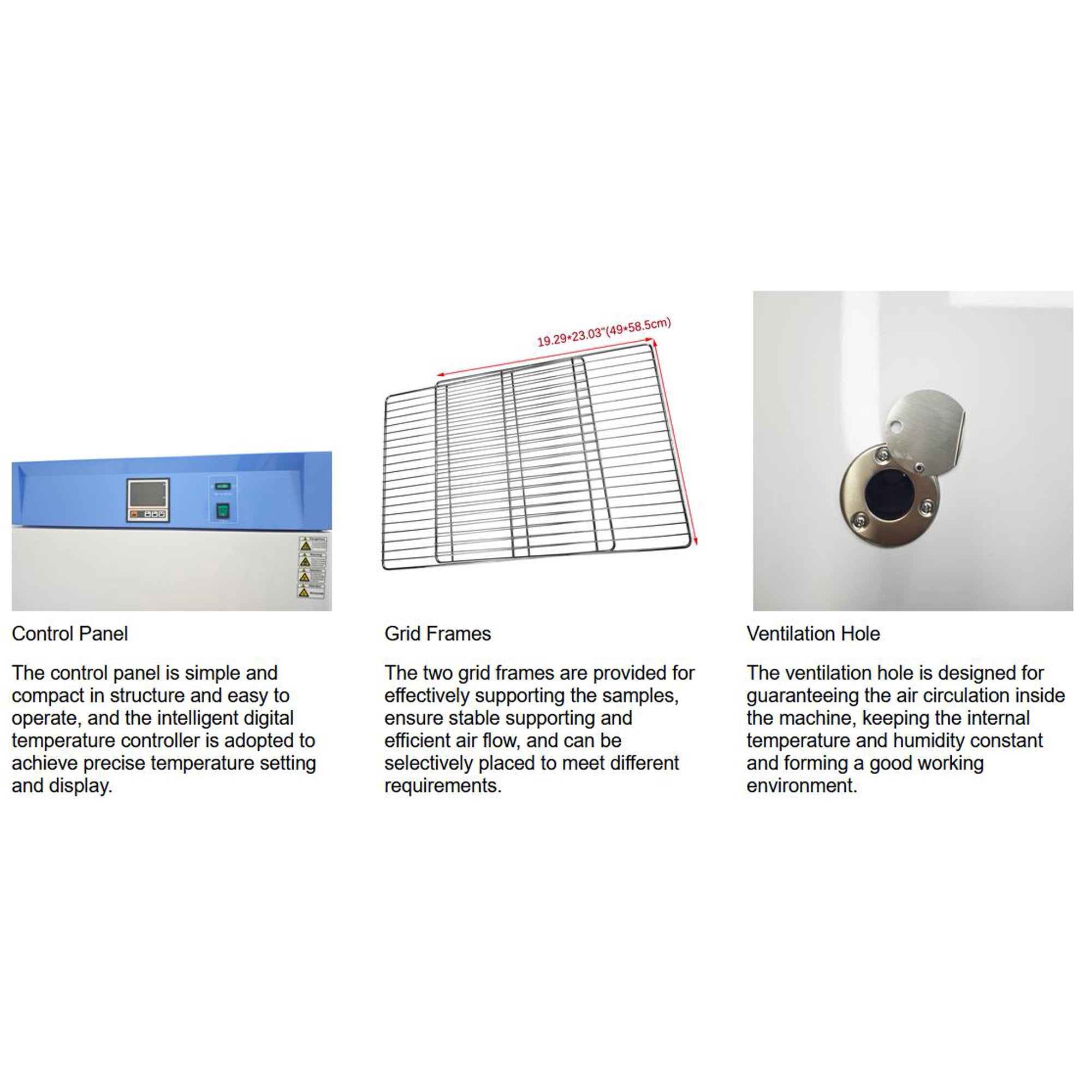

• Precise Intelligent Temperature Control: Microcomputer digital display controller provides accurate temperature regulation with overheat protection, timing, and alarm functions. This prevents overheating and ensures stable conditions for samples.

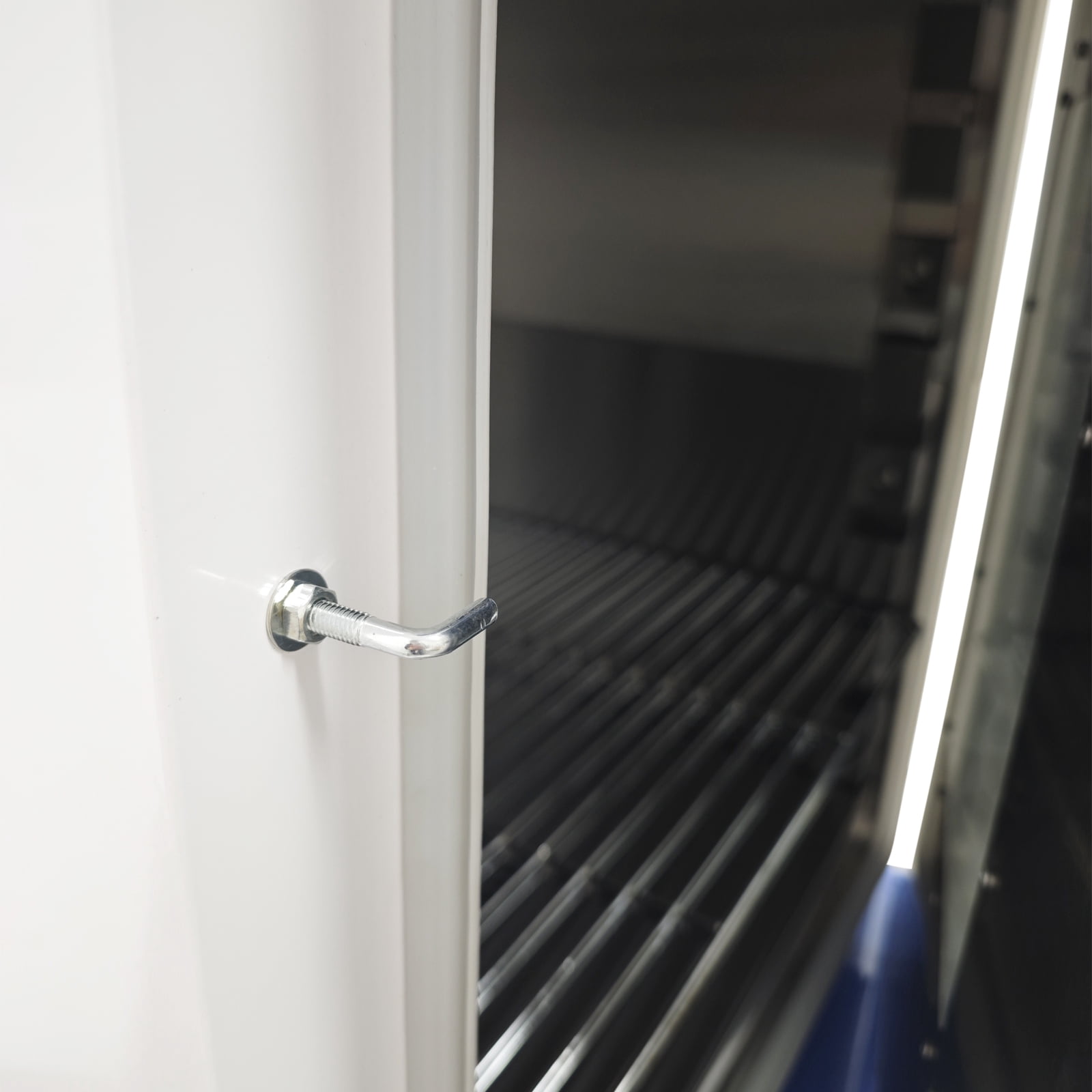

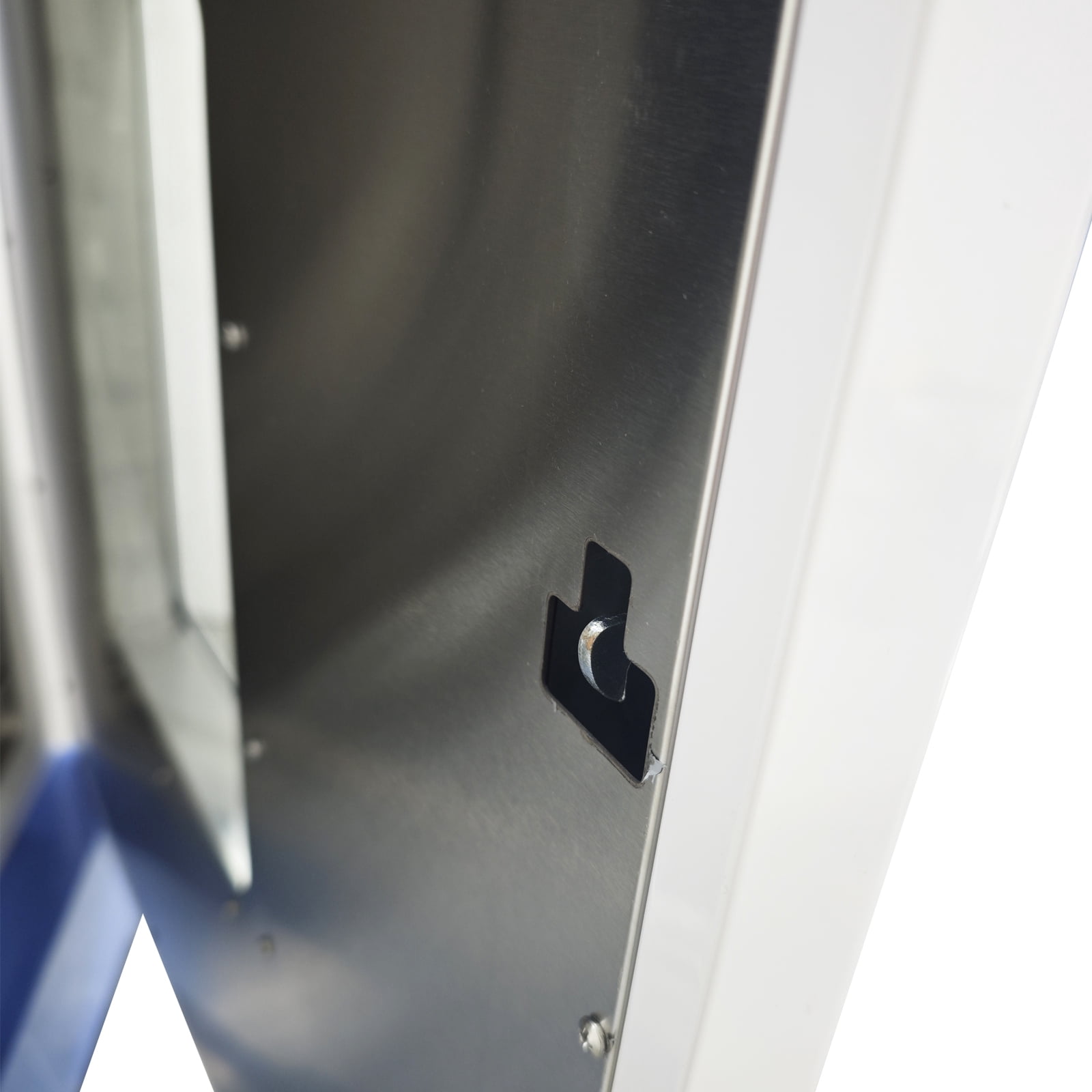

• User-Friendly Design: Double-layer tempered glass observation window allows real-time monitoring of samples. The lockable tension-adjustable door lock and ergonomic handle ensure safe, convenient operation.

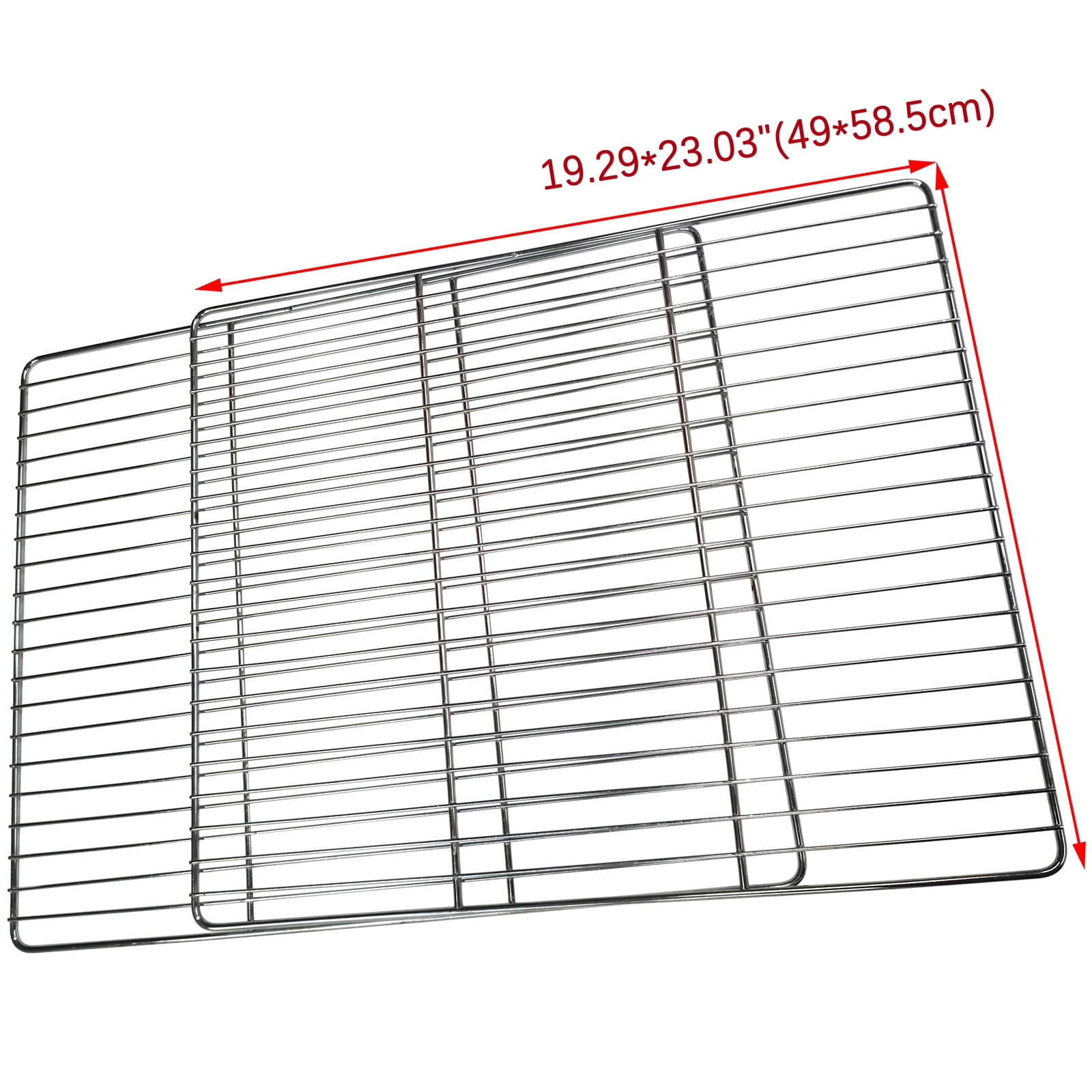

• Versatile & Space-Saving: Double-layer lining design is compact, safe, and aesthetically pleasing, making it suitable for workshops, labs, and offices. Ventilation holes and grid frames support air circulation and flexible sample placement.
